All CollectionsEpic Control 4EPanel LED Behavior

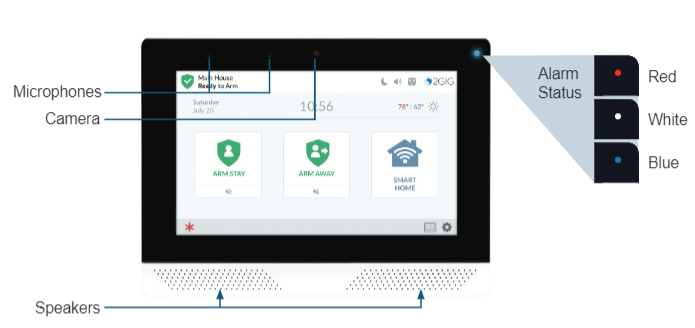

The Epic Control 4E panel has a single LED light on the top right corner. Depending on the panel's alarm status, the multi-colored LED will flash blue, white or red.

Alarm StatusAC Power LED StatusBattery Power LED Status
System Ready to Arm (all sensors closed)Solid BlueFlashing Blue
System Not Ready to Arm (one or more sensors open)Solid WhiteBlinking White
Exit Delay Countdown / ArmedSolid RedFlashing Red
Entry Delay Countdown / In Alarm / Armed After AlarmBlinking RedBlinking Red
